ceramic fiber blanket braided SS wire rope

Ceramic fiber could be used for heat insulating because of its air porosity of 90% inside it. Based on its 1260℃ classified temperature, the ceramic fiber is an ideal substitutes for asbestos product used for thermal insulation and heat protection. It doesn’t burn, rot, mildew, deteriorate, resist most acids and has low thermal expansion.

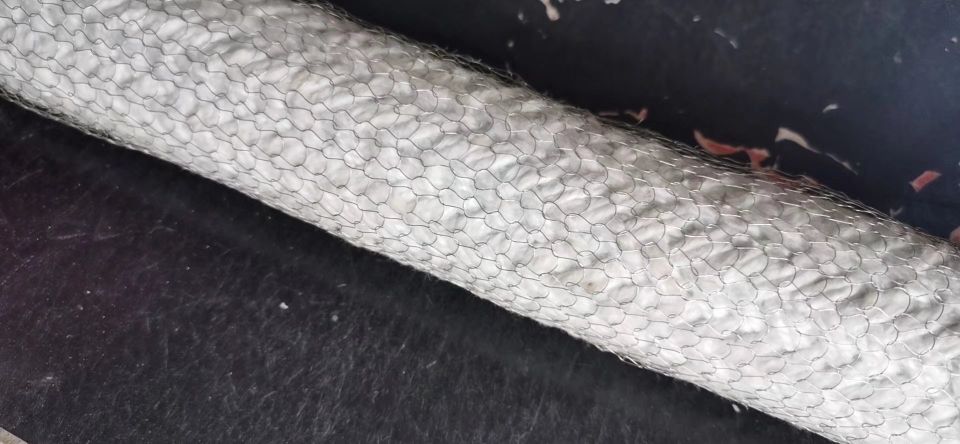

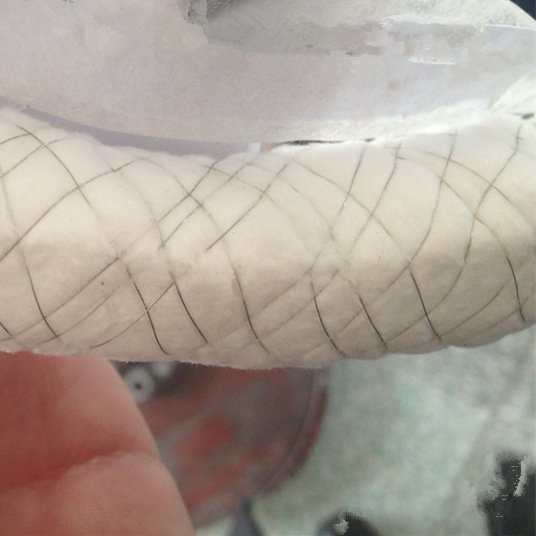

Tianjin Tuolin Technology Ceramic fiber rope with stainless steel wire is a fabricated rope made of type 1260℃ ceramic fiber yarns or blankets. Then the blanket will be braided the stainless steel wire outside. This kind of structure is the most cost-saving way for the insulation rope. The blanket play the role of high temperature insulation and the stainless steel wire outside keep the blanket shape well. But this rope could not be used for long time, and it could not be used repeatedly.

Ceramic fiber Composition: Al₂O₃ : 45~47%, SiO₂ : 49~55%, Fe₂O₃ < 1.2%

Ceramic fiber diameter: 2~6um

Ceramic fiber length: >50mm

Thermal Conductivity(800℃): 0.17 W/m·K

Shot: < 8.5%

Classification Temperature: 1260℃

Melting Temperature: 1760℃

Diameter: 3mm - 50mm

Length: 200m - 15m

Density: 96~160kg/m³

Stainless steel wire Reinforced: Inconel wire, SUS304, SUS316, SUS310, SUS201,-(1050℃)

The ceramic fiber rope with stainless steel wire braided could be used for high temperature pipes insulation and sealing, lining for electric wire and cable insulation, thermal insulation for electric stoves and ovens, sealing for boiler and high temperature gas-tight parts, etc.

If you need more information about ceramic fiber rope with stainless steel wire braided, such as Datasheet or MSDS, please leave a message below or send email to: tuolin@tuolintech.com.
